200W Double Channels Thermoelectric Dehumidifier for Automated measuring systems and analyzers for pollution gas

Name: 200W Double Channels Thermoelectric Dehumidifier for Automated measuring systems and analyzers for pollution gas
Brand: Adcol
Price: 1 USD

Wholesale 200W Double Channels Thermoelectric Dehumidifier for Automated measuring systems and analyzers for pollution gas from china suppliers

Overall dimensions(mm) : W220*D167*H255

Inlet gas dew point : 0-45℃

Control Method : 1-3 ℃

Short-term ripple : +- 0.1℃

No. of channels : Double

Control accuracy : +- 0.1℃

Power Input : 200W

Outlet gas dew point : 1～3℃

Cooling method : Thermoelectric cooling

Joint : Rc 1/4

Frame material : Steel, White Paint，SUS

Setting accuracy : 1.0℃ +- 0.5℃

Brand Name : Adcol

Model Number : ATD200-01

Certification : ISO9001 , CE

Place of Origin : CHINA

MOQ : 1EA

Price : Negotiation

Payment Terms : T/T , Paypal

Supply Ability : 500PCS

Delivery Time : 3 - 4 weeks

Packaging Details : Solid carton packaging

Weight : 6KG

Inlet gas temperature : 0-45℃

P/N : ATD200-01

Outside air temperature : 0-45℃

Heat radiation method : Forced air cooling,with built-in fan

Contact Now

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

200W Double Channels Thermoelectric Dehumidifier

1.Product IntroductioCurrently we provide 200W standard dehumidifier with high performance

thermoelectric modules. It can cool the gas and remove the moisture quickly and effectively and can be

indispensable at the pre-processing stage for various gas analyzers

200W Double Channels Thermoelectric Dehumidifier for Automated measuring systems and analyzers for pollution gas

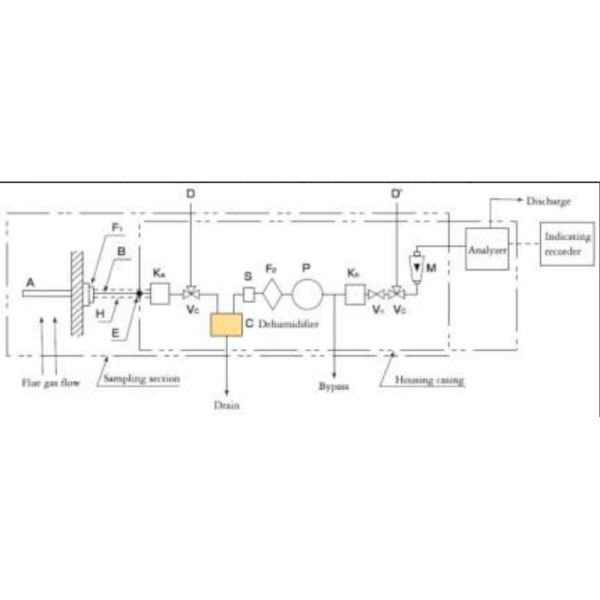

2. Typical Application

Automated measuring systems and analyzers for pollution gas

C- Thermoelectric Dehumidifier

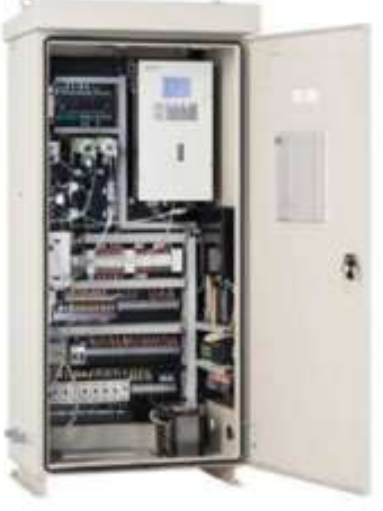

Online multi-component gas analyzer

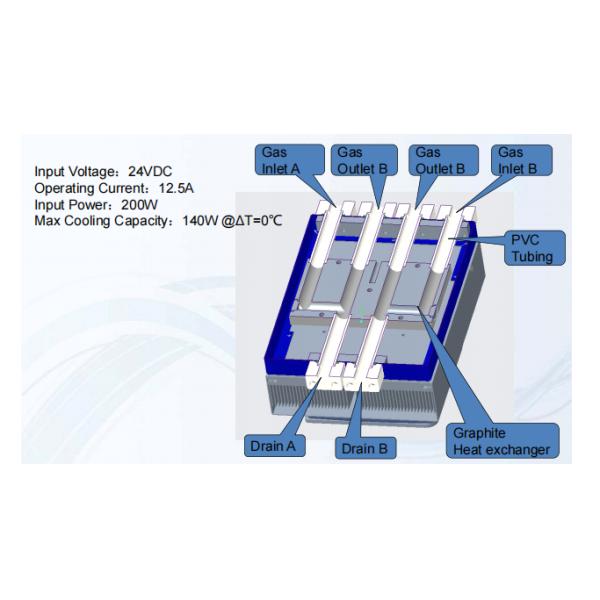

3.Current Double Channel Mode Display

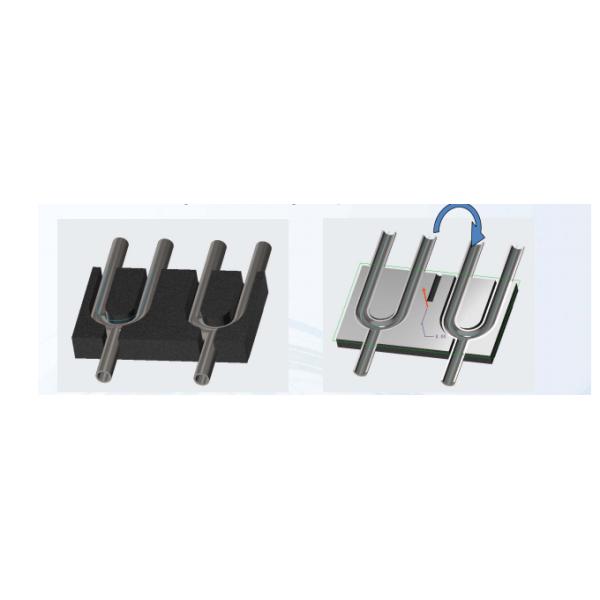

4.Design for the Application of Hydrogen Generators

(1):Use the whole stainless steel tubing to contact with the gas,and make the

heat exchanger with sus tubing + Graphite Block

(2):Keep 2 channels contected in series or divide the gas into 2 halves and

flow them through the 2 channels at the same time.

(3):All the parts(including the electric components and mechanical parts)

are same as our current ATD200-24 except for the Graphite block and tubings.

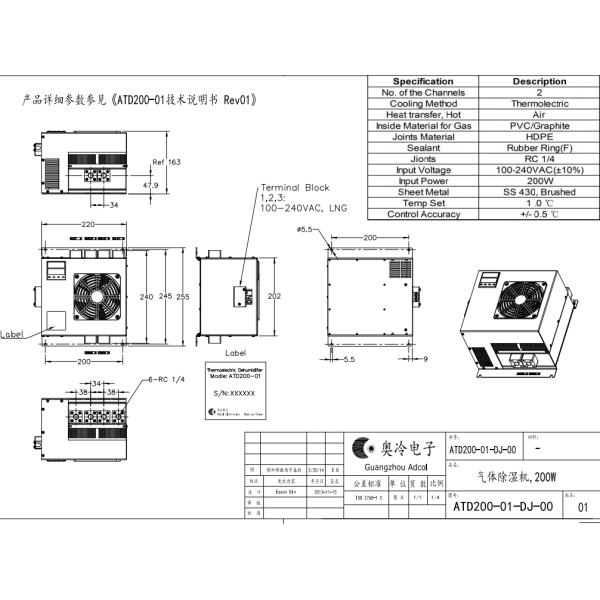

5.Design drawings
